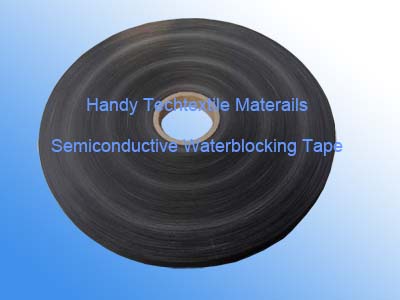

Semi-conductive Water Blocking Binding Tapes /HYSW
|
Excellent tensile Strength
Composition:
Polyester fiber, super absorbent resin, semi- conductive adhesive
Application:
Be used for waterblock ,shield,buffer for high-voltage cable.
|
Property of Seim conducting Waterblocking BindingTapes
Property |
Unit |
Type HYSW |
Test Method |
HYSW-15 |
HYSW-20 |
HYSW-30 |
Mass per unit |
g/m2 |
130±20 |
150±20 |
220±20 |
ISO9073-1 |
Thickness |
mm |
0.15±0.04 |
0.20±0.04 |
0.30±0.04 |
ISO9073-2 |
Tensile strength |
N/cm |
>=100 |
>=120 |
>=220 |
ISO9073-3 |
Elongation |
% |
>=20 |
>=20 |
>=20 |
ISO9073-3 |
Sur-resistance |
ohm/ |
<=1500 |
DIN53482 |
Vol-resistance |
ohm.cm |
<=100000 |
DIN54345 |
Swelling speed |
mm/1'00 |
>=5 |
>=5 |
>=6 |
Hytest-6 |
Short-term stability |
oC |
230 |
Hytest-5 |
Long-term stability |
oC |
145 |
IEC 216 |
Moisture |
% |
<9 |
ISO287 |
Packinng of Semi-conductive Waterblocking Binding Tapes :
Standard Core Inside Diameter :76mm
Outside Diameter : Max. 700mm
***Other packaging combinations available. Please contact Handy for details. Ordering Information:
When ordering, please specify slit width, inner diameter and maximum outside diameter. |
