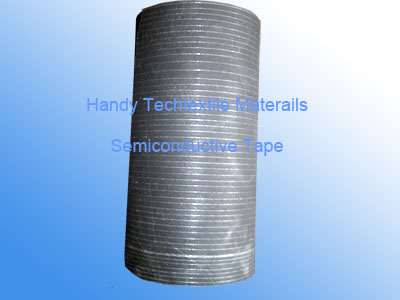

Semi conductive Reinforced Nonwoven Tapes SCWD-5 Series
Semiconducting Reinforced Nonwoven Tapes:Used in conductor binding, shielding and separating in cables, and it is lighter,thinner, and more strength.
 |
Minimum Slit Width: 15mm
Standard Core Inside Diameter :76mm
Outside Diameter : Max. 700mm
***Other packaging combinations available.Please contact Handy for details. |
Property of Semiconducting Reinforced Nonwoven Tape
|
Property |
Unit |
SCWD-5 |
Test Method |
|
SCWD-5-25 |
SCWD-5-30 |
|
Mass per unit |
g/m2 |
85±5 |
100±8 |
ISO9073-1 |
|
Thickness |
mm |
0.25±0.04 |
0.30±0.04 |
ISO9073-2 |
|
Tensile strength |
N/cm |
>=100 |
>=120 |
ISO9073-3 |
|
Elongation |
% |
>=12 |
>=12 |
ISO9073-3 |
|
Sur-resistance |
ohm/ |
<=1500 |
<=1500 |
DIN53482 |
|
Vol-resistance |
ohm.cm |
<=1000000 |
<=1000000 |
DIN54345 |
|
Short-term stability |
oC |
230 |
230 |
Hytest-5 |
|
Long-term stability |
oC |
90 |
90 |
IEC 216 |
|
Moisture |
% |
<=5 |
<=5 |
ISO287 |
Semi-conductive Reinforced Non-woven Tape | Cable Wrapping Tape
Semiconducting Reinforced nonwoven tapes are black color, it be made of polyester fiber,high strength thread,semiconducting adhesive. Ordering Information:
When ordering, please specify slit width, inner diameter and maximum outside diameter. |
