emi conductive Nonwoven Tapes SCWD Series
 |
Minimum Slit Width: 15mm
Standard Core Inside Diameter :76mm
Outside Diameter : Max. 700mm
***Other packaging combinations available.
Please contact Handy for details. |
Property of Semiconducting Nonwoven Tape
|
Property |
Unit |
Type SCWD |
Test Method |
|
SCWD-10 |
SCWD-15 |
SCWD-20 |
SCWD-25 |
|
Mass per unit |
g/m2 |
35±5 |
50±5 |
75±6 |
90±10 |
ISO9073-1 |
|
Thickness |
mm |
0.10
±0.04 |
0.15
±0.04 |
0.20
±0.04 |
0.25
±0.04 |
ISO9073-2 |
|
Tensile strength |
N/cm |
>=20 |
>=30 |
>=43 |
>=46 |
ISO9073-3 |
|
Elongation |
% |
>=10 |
>=12 |
>=12 |
>=12 |
ISO9073-3 |
|
Sur-resistance |
ohm/ |
<=1500 |
<=1500 |
<=1500 |
<=1500 |
DIN53482 |
|
Vol-resistance |
ohm.cm |
<=1000000 |
<=1000000 |
<=1000000 |
<=1000000 |
DIN54345 |
|
Short-term stability |
oC |
230 |
230 |
230 |
230 |
Hytest-5 |
|
Long-term stability |
oC |
90 |
90 |
90 |
90 |
IEC 216 |
|
Moisture |
% |
<=5 |
<=5 |
<=5 |
<=5 |
ISO287 |

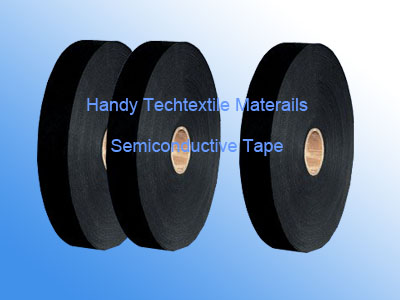

Semi-conductive Non-woven Tape | Cable Wrapping Tape
Semiconducting nonwoven tapes are black , it be made of 100% polyester, dipping into semi-conductive adhesive and drying. The tensile strength is excellent as the fiber be carded enough. The surface resistance is small. Be used for conductor binding, shielding and separating in cables. Ordering Information:
When ordering, please specify slit width, inner diameter and maximum outside diameter. |
