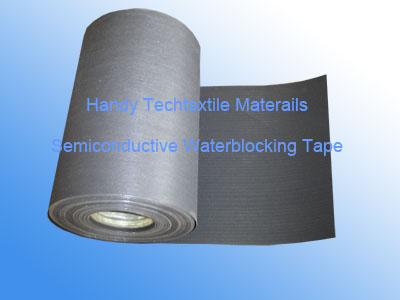

Reinforced Semi conductive Waterblocking Tapes /SCWH
Composition: Reinforced polyester non-woven fabric, super absorbent resin,semi- conductive adhesive
Application: Applications where a robust tape is required and be used for water-blocking in neutral screen wire between cable components. It has the excellent tensile strength.
|
Fast Swelling Speed,
Excellent Swelling Height,
Excellent tensile Strength |
Property of Reinforced Seim conducting Waterblocking Tapes
Property |
Unit |
Type SCWH |
Test Method |
SCWH-40 |
SCWH-50 |
Mass per unit |
g/m2 |
130±20 |
150±20 |
ISO9073-1 |
Thickness |
mm |
0.40±0.05 |
0.50±0.05 |
ISO9073-2 |
Tensile strength |
N/cm |
>=80 |
>=100 |
ISO9073-3 |
Elongation |
% |
>=12 |
>=12 |
ISO9073-3 |
Sur-resistance |
ohm/ |
<=1500 |
DIN53482 |
Vol-resistance |
ohm.cm |
<=100000 |
DIN54345 |
Swelling speed |
mm/1'00 |
>=8 |
>=8 |
Hytest-10 |
Swelling height |
mm/3'00 |
>=12 |
>=12 |
Hytest-11 |
Short-term stability |
oC |
230 |
Hytest-5 |
Long-term stability |
oC |
90 |
IEC 216 |
Moisture |
% |
<9 |
ISO287 |
Packinng of Reinforced Semi-conductive Waterblocking Tapes :
Standard Core Inside Diameter :76mm
Outside Diameter : Max. 700mm
***Other packaging combinations available. Please contact Handy for details. Ordering Information:
When ordering, please specify slit width, inner diameter and maximum outside diameter. |
