Handy Techtextile >> Cable Materials >>Non-conductive Binding Tapes>> Nonwoven Tapes WD-2 and WD-3

Polyester Nonwoven Tapes /WD-2 and WD-3

Minimum Slit Width: 10mm

Standard Core Inside Diameter :76mm

Outside Diameter : from 100 to 700mm

***Other packaging combinations available.
Please contact Handy for details.

Properties of polyester Nonwoven Binding tape WD-2 & WD-3

Property	Unit	WD-2 & WD-3			Test Method
Property	Unit	WD-3-10	WD-2-15	WD-2-20	Test Method
Mass per unit	g/m²	70±5	75±5	75±5	ISO9073-1
Thickness	mm	0.10±0.03	0.15±0.03	0.20±0.03	ISO9073-2
Tensile strength	N/cm	>=46	>=46	>=46	ISO9073-3
Elongation	%	>=10	>=10	>=10	ISO9073-3
Short-term stability	^oC	230	230	230	Hytest-5
Long-term stability	^oC	90	90	90	IEC 216
Moisture	%	<=5	<=5	<=5	ISO287

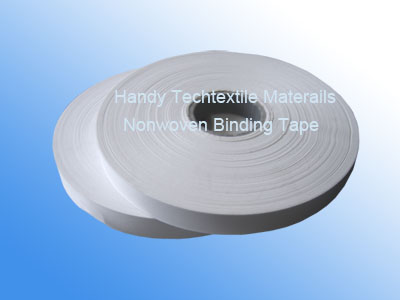

Nonwoven Binding tape WD-2 & WD-3

Application: General binding, bedding and separating in wire and cables. It is the replacer of tissue paper, as it is more strength, low elongation and non causticity.

Ordering Information:

When ordering, please specify slit width, inner diameter and maximum outside diameter.
